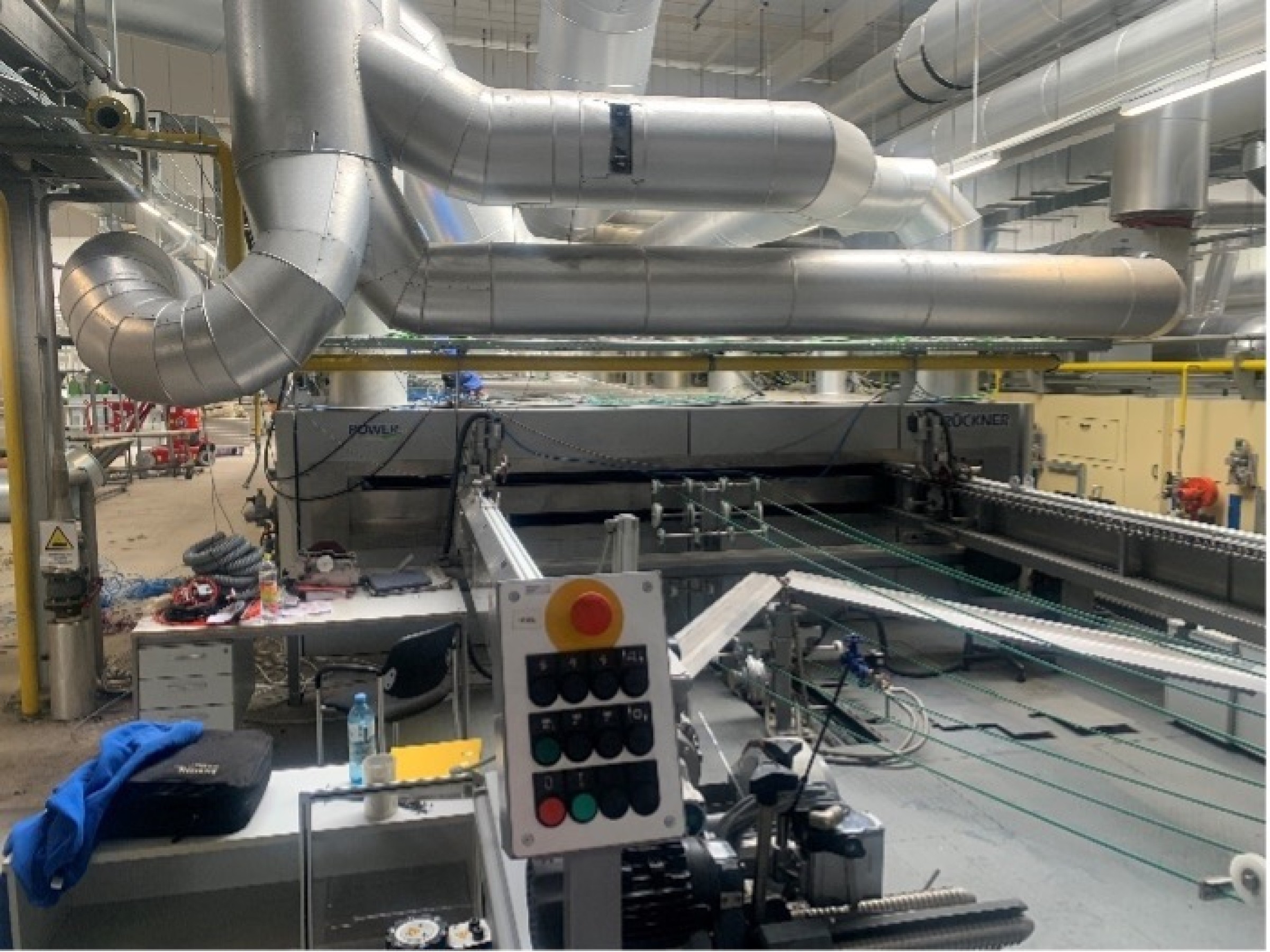

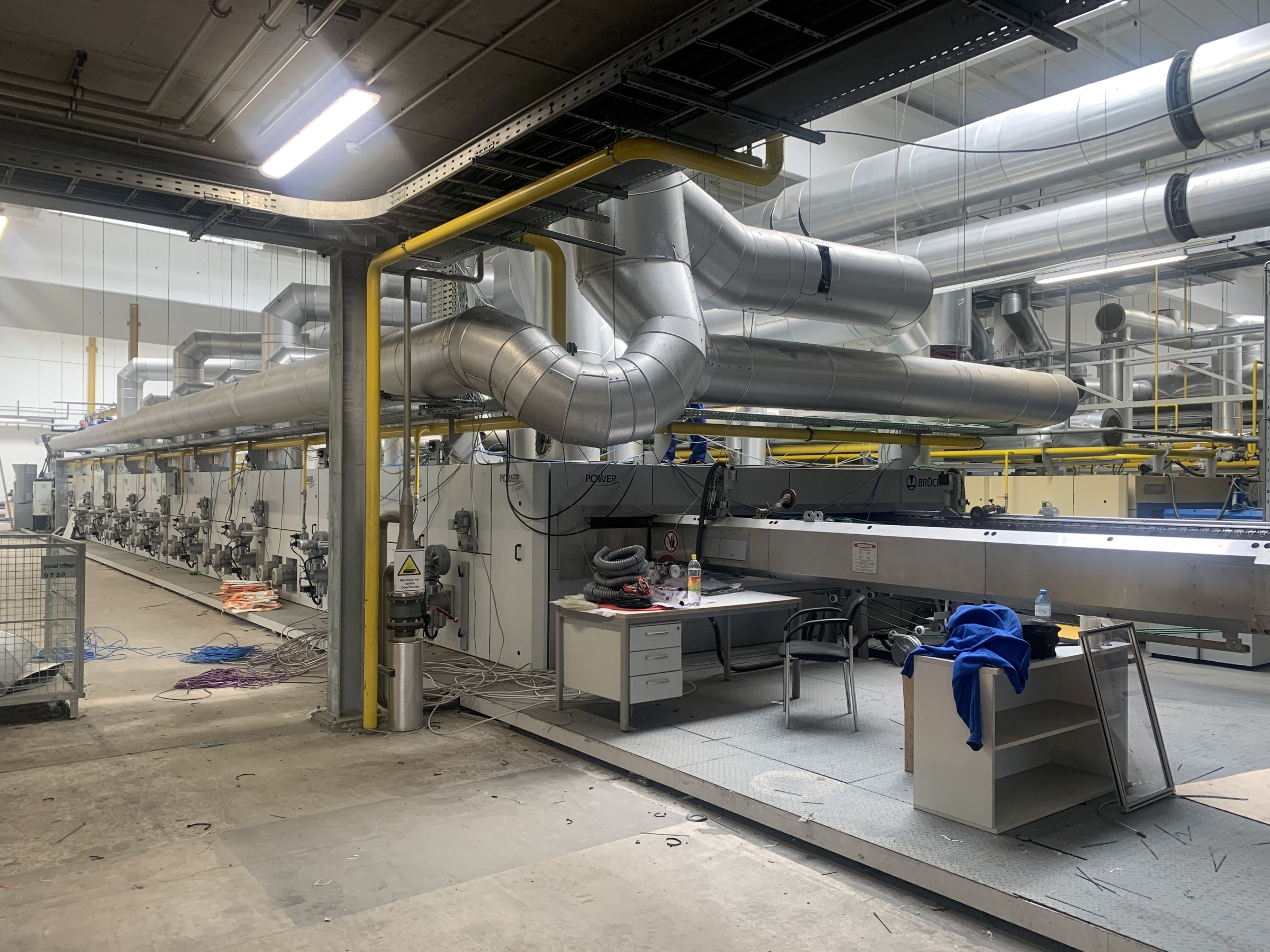

LIKE NEW 4.2-meter 2018 Brueckner Stenter Frame

Manufacturer: Brueckner
Model: Power Frame SFP
Year: 2018

PROPOSAL – 6390-ST

1 BRUECKNER HIGH-CAPACITY SINGLE-LAYER STENTER

Type Power Frame SFP

Year 2018

4200 mm (165”) working width

4400 mm (173”) roller width

Gas heated

8 Compartments/Zones

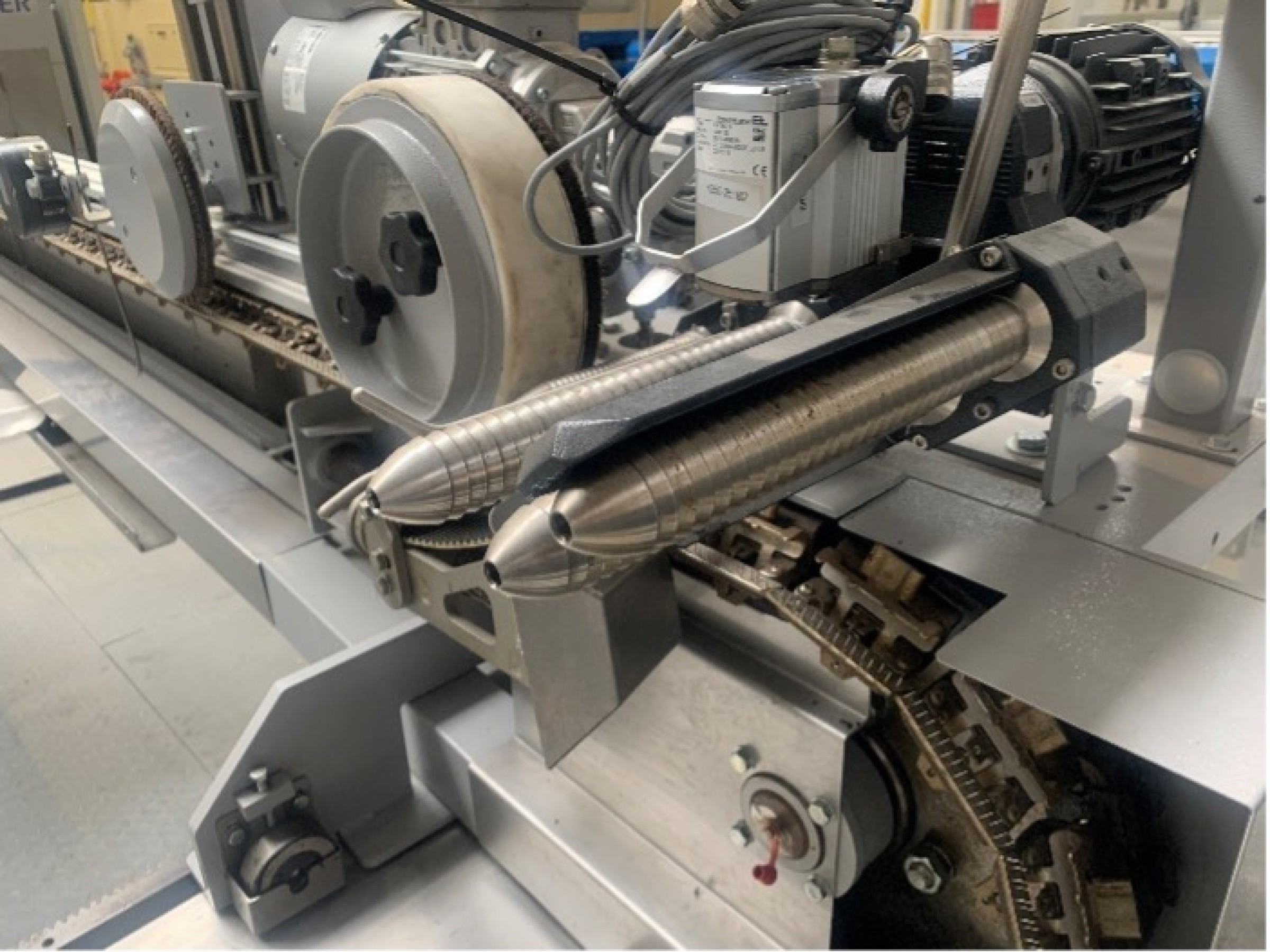

Pin chain

Fabric transport: Vertical chain STAR-DUR (SK999)

Fabric take-up: Pin with depinning protection

6-meter length of entry zone

Thermo zones: 8 drying and heat-setting compartments, 3.0 m each

Length of exit compartment: 6.5 m

Heating system: indirect gas heating

(Circulating air temp. min. 110℃/max. 210 °C)

Fabric type: knitted

Fabric weight: 30 - 300 g/m²

Min. acceptable fabric width: 1,300 mm

Mechanical speed: up to 80 m/min, control range 1:20

Consisting of:

1) Unwinding

2) Inlet zone

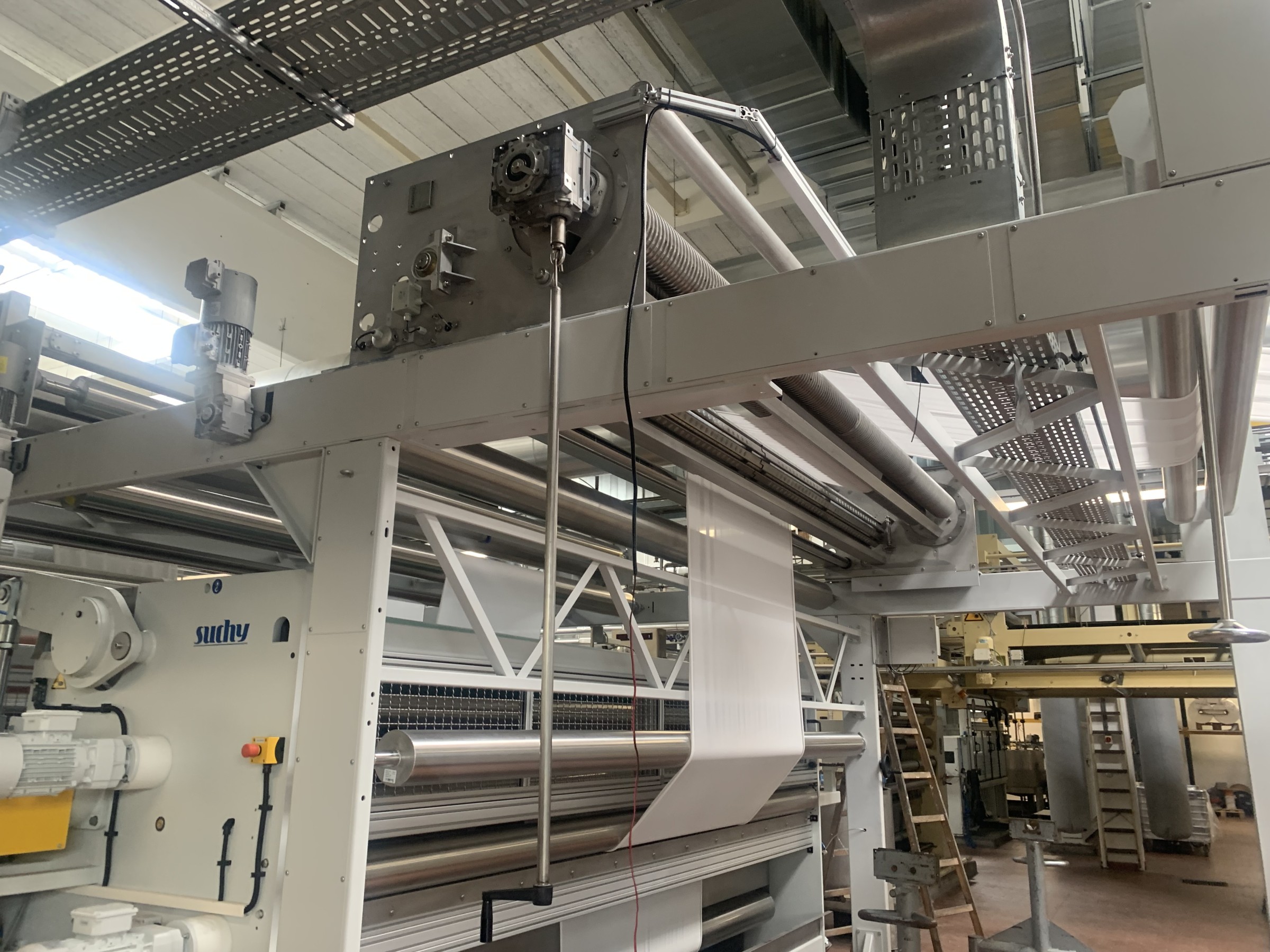

3) SUCHY Padder POWER-PAD

4) SUCHY Padder POWER-PAD

5) PLEVA Double straightening unit

6) Transport system POWER-FRAME

7) Dryer SPLIT-FLOW POWER-FRAME with Heating System

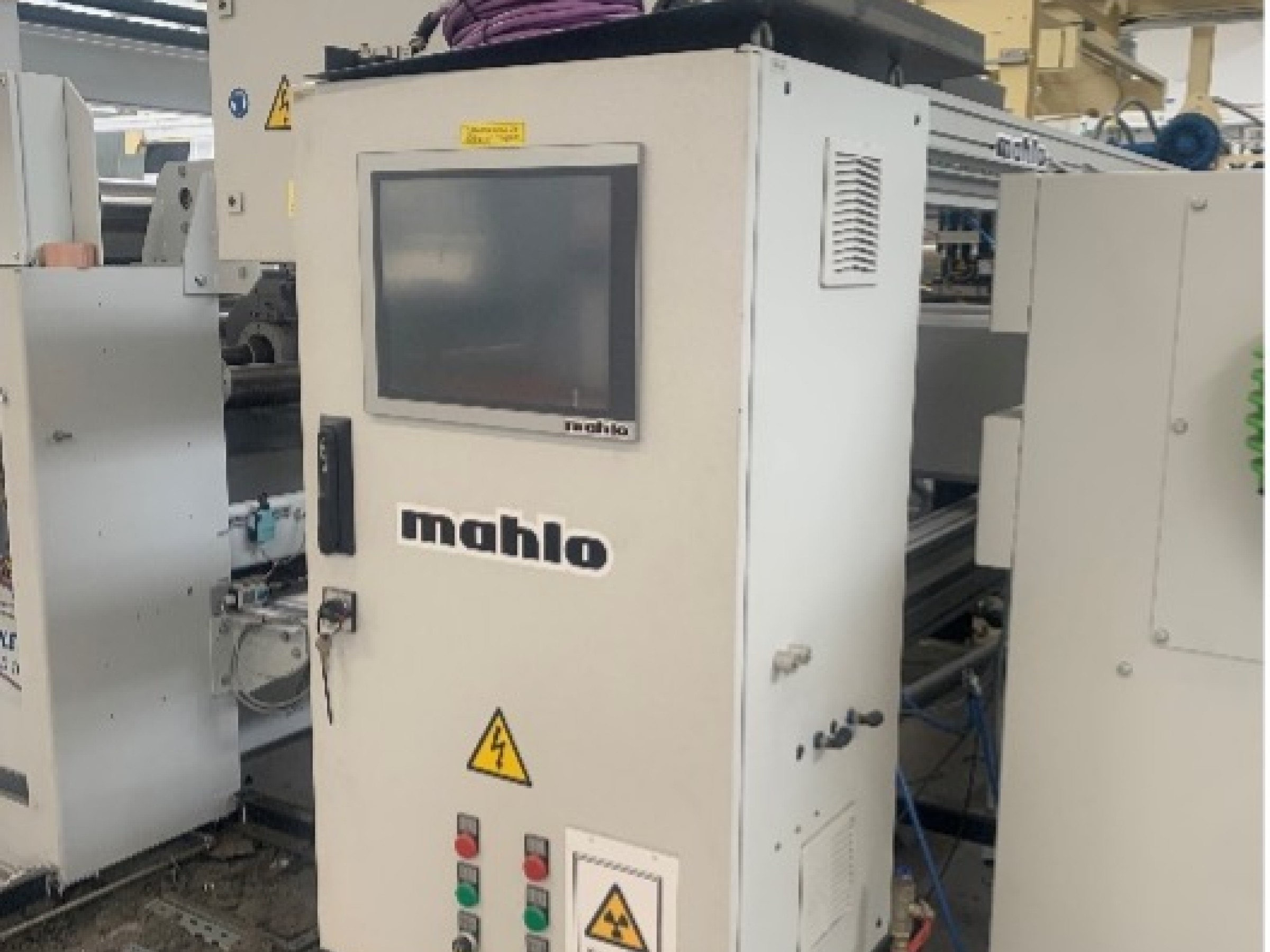

8) MAHLO GRAVIMATS

9) ECO-HEAT-recovery and ECO-AIR exhaust air cleaning

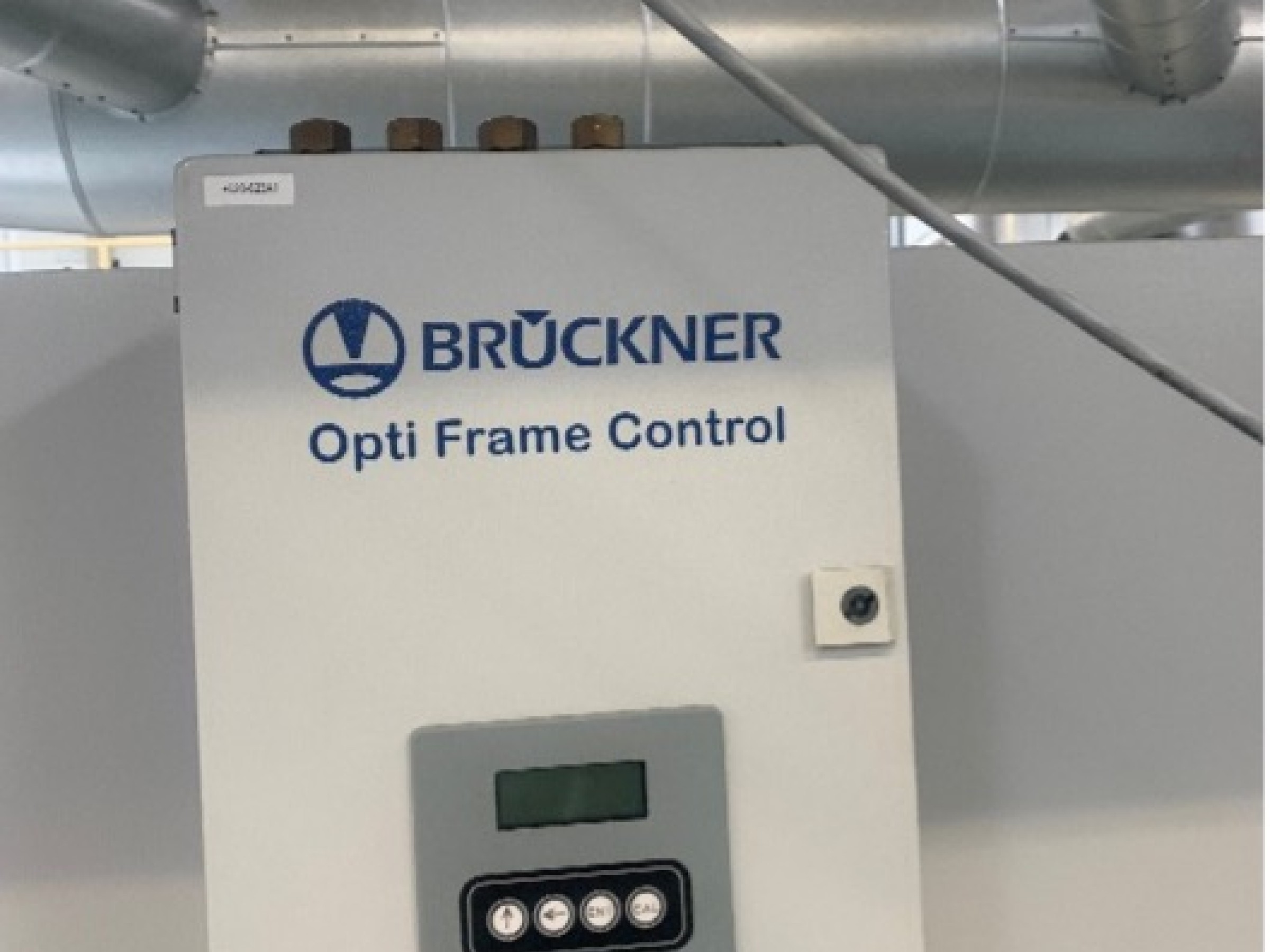

10) Process control and visualization system MULTI-CONTROL

With:

OPTI-HUMIDITY (exhaust air humidity) and

OPTI-HEAT (fabric temperature measurement)

Measuring range: 0 - 250 °C

Contact for Pricing
