Complete Fung Chang (Taiwan) Raschel Knitting Lines

Manufacturer: Fung Chang
Model: DR2-170-F
Year: 2020

PROPOSAL – 6382-POT



2 COMPLETE FUNG CHANG (TAIWAN) RASCHEL KNITTING LINES

Year: 2020

Each Line Consisting of:

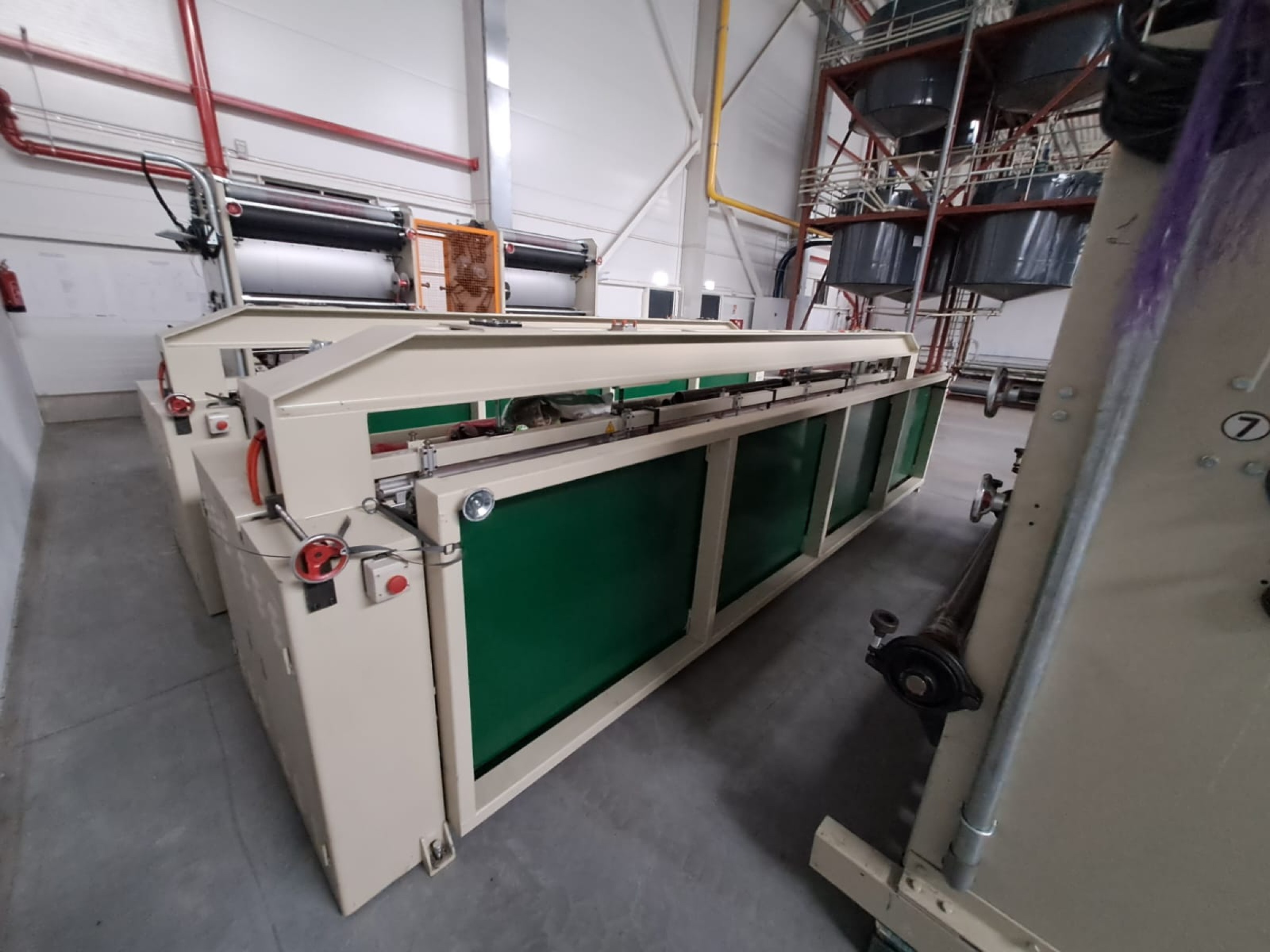

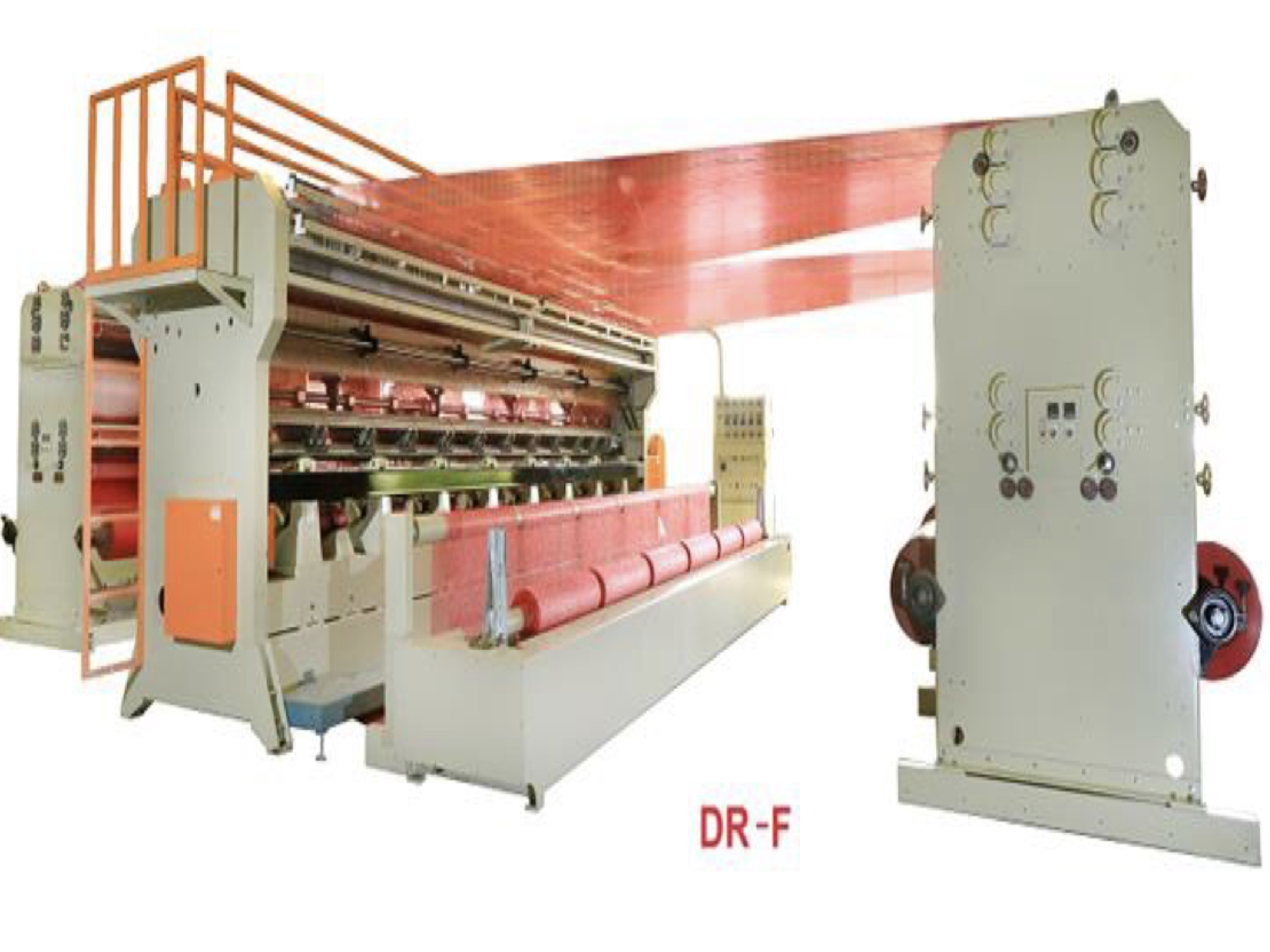

(1) DOUBLE-NEEDLE BAR RASCHEL KNITTING MACHINE

Type: DR2-170-F

Year: 2020

Working with 4300 mm (170”)

Gauges of needle bed: 6G per inch

Number of guide bars: 9 bars (4 ground bars + 5 function bars)

Number of needle bar: 2 individual bars with latch needle

Guide & Latch needle: 2G per inch

Drive of knitting element: Eccentric shaft driving

Yarn supply: Slitting and Extension machine synchronized with

knitting machine

Yarn feed and tension: 4 sets of 3 rollers cont. by motor with inverter

Pattern drive: Pattern drum with chain link

Main motor: TECO (Taiwan), 10 HP

Inverter: DELTA (Taiwan)

Inching drive: Controlled by main motor with inverter

Fabric take-up drive: 3-rollers driven by gear box

Auto cutting device: Heat cutting: 3 kW; Driven by 0.5HP motor with

PLC control

Electric counter with panel control box

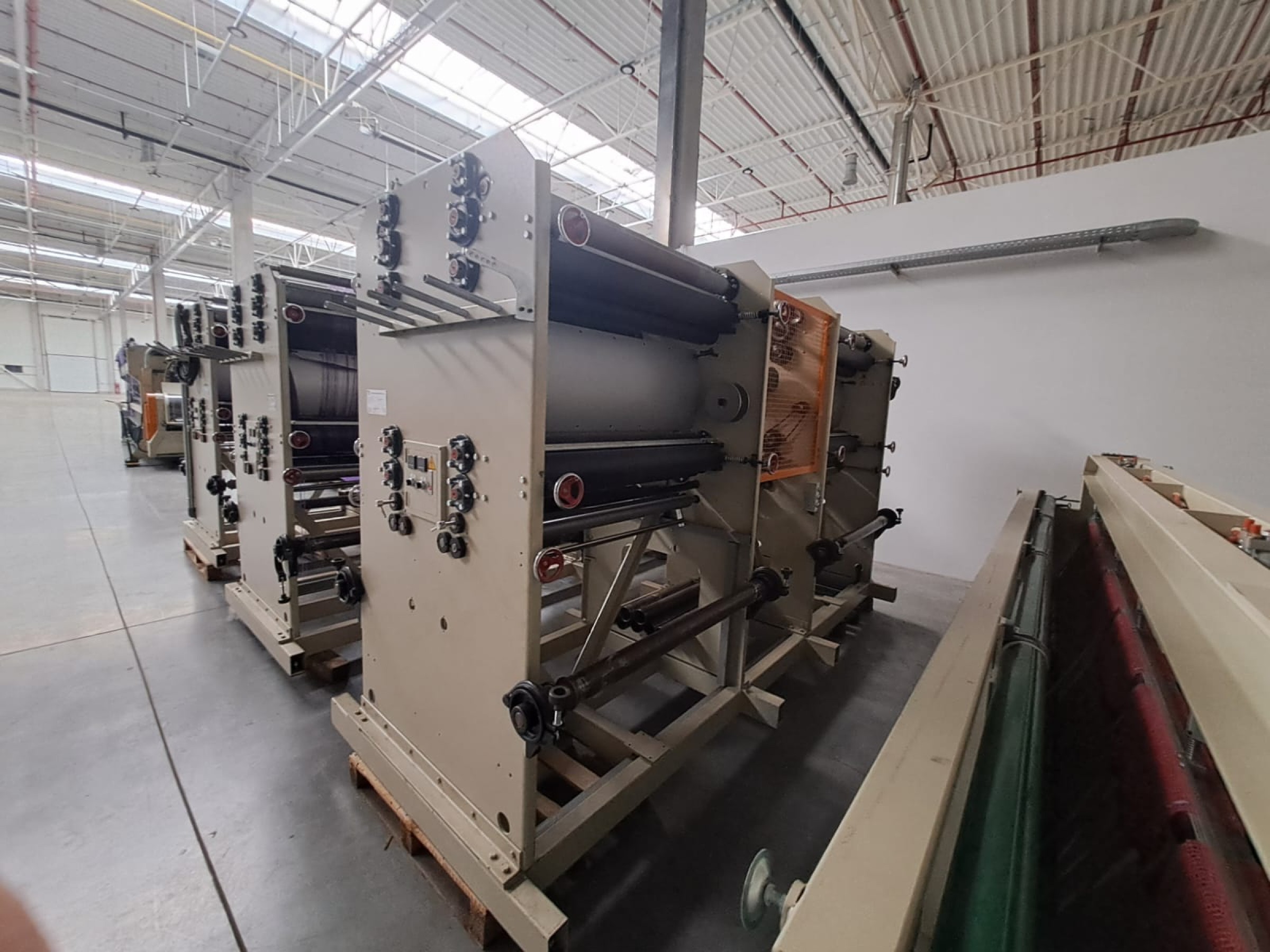

(4) SLITTING AND EXTENSION WINDING MACHINES

Type: SE-120-N2

Year 2020

Working width 1200 mm

max. Roller dia. 1000 mm

Available film width: 1,180 mm

Take-off roller: 3 pcs/unit roller x 16 units driven by motors with

inverter

Blade thickness: 0.25mm

Washer : 5mm for main use, 3.5mm for spare

Electric control synchronized with knitting machine

HDPE film requirement: Blow-up ratio: 1.2 ~ 1.5

Film Width (max.): 560mm or 1180mm

Film thickness: 60 microns ~ 80 microns (0.06mm ~ 0.080mm)

Film condition: good quality film without wrinkle or fold inside

Iron pipe: I.D. 84mm – 89mm

Model: DR2-170-F

Material: H.D.P.E.

Yarn: flat yarn (tape yarn)

Capacity: Bag size: 50cm x 80cm

Speed: 700 r.p.m.

350 r.p.m. x 60 min ÷ 6 C x 80% x 5 rolls ÷ 22”(width of bag) = 636 bags/ hr

636 x 24 = 15,264 bags / day

Width of bag: 50cm + 6 (stitching distance) = 22”

170” ÷ (80cm ÷ 2.54) = 5 rolls

Contact for Pricing
