Dornier Rigid Rapier Weaving Loom For Specialty Fabrics

Manufacturer: Dornier
Model: PTS 1
Year: 2007

PROPOSAL NO. 16181-JAC

1 DORNIER RIGID RAPIER WEAVING LOOM FOR SPECIALTY FABRICS
3D TECHNICAL FABRICS, RIGID TAKE UP OPTION IN ADDITION TO CLOTH ROLLER

Model PTS 1

AT Dialog 2 Control Panel

Year 2007

150 cm waving width

Single weft feed direct from creel stand without weft feeder

Single Rapier weft insertion from left side

Single weft transition to the right side with the positive rapier opening

And closing on both sides

Electronic Take-up

With Cloth roller Take-up

Take up to extended pull platform synchronized to the take-up beam

In addition Functional for the manufacture of fabric on a linear flat platform as

Flat Table Take off By Griffiths Textiles Year 2016, with Pneumatic

Clamping 200 to 1000mm fabric width x 2500mm fabric length

Electronic synchronized Let off from Creel with

Tension equilibria drag roller – No Creel Supplied

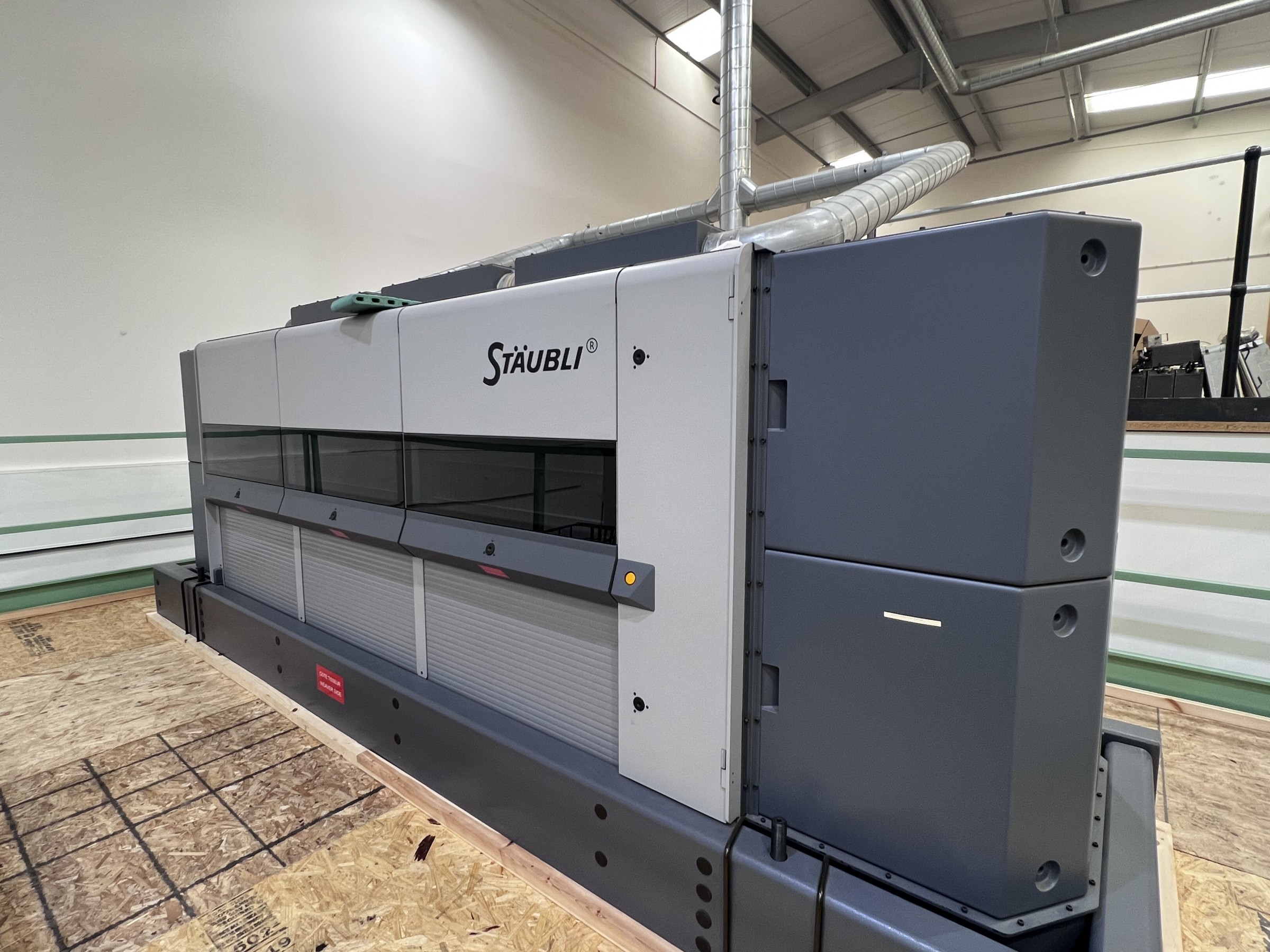

Shedding by Staubli Jumbo Jacquard with chiller Type MAE EVO

Model Unival 100

Specially sealed for Carbon Fiber Weaving

6144 Hook Format

With 5120 hooks installed

JC6 Controller

Harness 5040 ends over 140 cm

With one Spare unused Harness 1400 ends over 150 cm – Year 2007

Direct Electronic synchronization to the loom without conventional

Jacquard drive shaft

Jacquard hooks are individually driven with individual servo motors to control

Infinitely variable hook lifting sequences

Without Temples, Warp Stop Motion or Dropper pins

With 1 Reed 9.85 spaces per 10 cm for High-Density 3D weaving

Contact for Pricing
