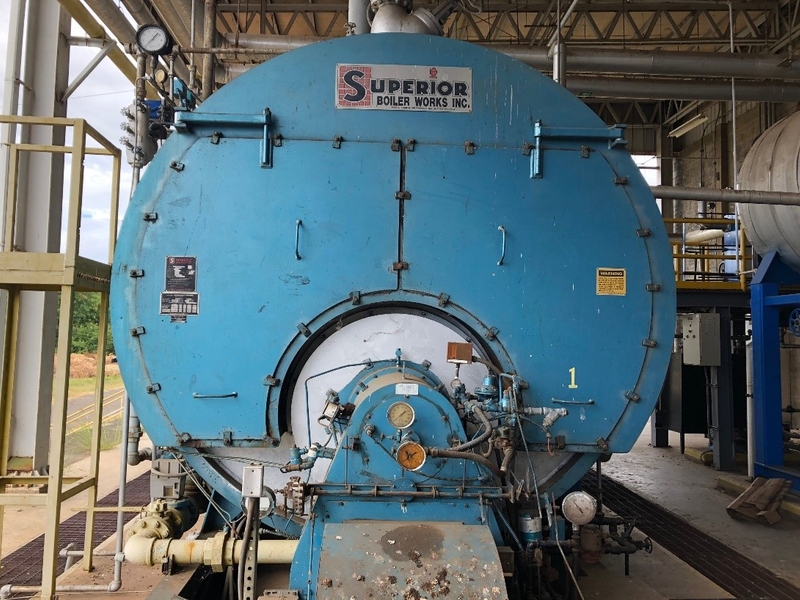

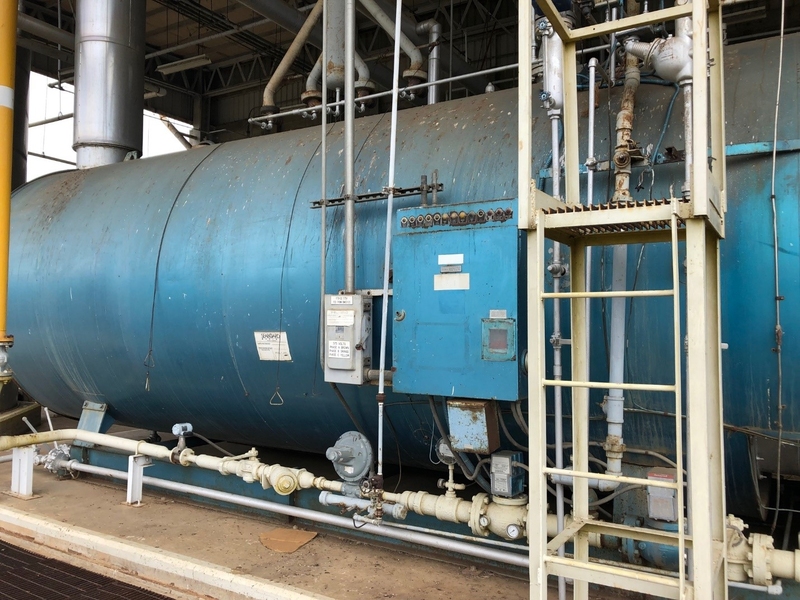

Superior Steam Boiler

Manufacturer: Superior
Model: 6-5-4000
Year: 2007

PROPOSAL – 15173-B-900

1 SUPERIOR BOILER

Model: 6-5-4000

Serial: 12116

Power: ~900 HP

Vapor max. W.P: 150 P.S.I.

Steam capacity: 27,600 lbs./hr.

Heating surface: 4000 ft2

Min. valve capacity: 32000 lbs/hr. (BTU. HR.)

Fuel type: LPG and heavy oil (2 burners)

Maximum rate of fire: 33600 ft3/hr. a 240 gal/hr.

Min. rate of fire: 11200 ft3/hr. a 30 gal/hr.

Designed Manifold Pressure: 25 TN.W.C

Shell thickness: 9/16 inches

Head thickness: 3/4 inches

Control circuit: 120 V, 60 Hz, 1-fase, 5-Amps

Burner motor: 575 V, 60 Hz, 3-fase, 40-Amps, 40 HP

Rebuilt 2007

Contact for Pricing
