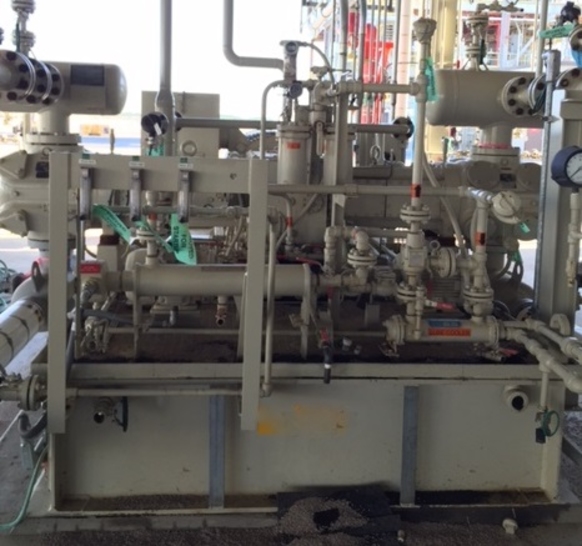

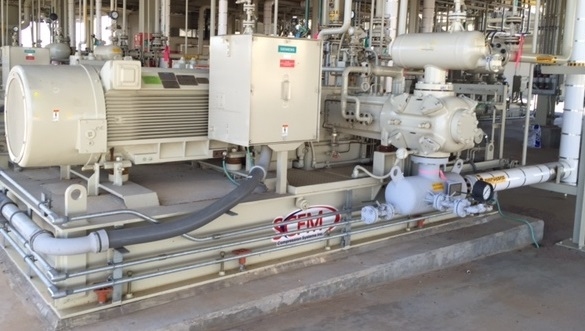

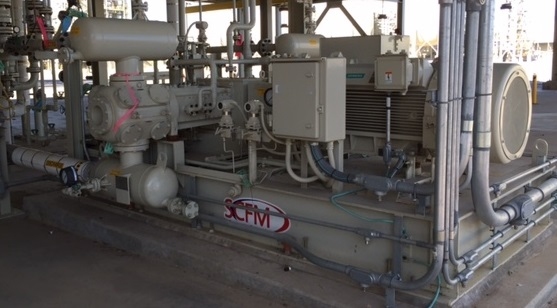

600 HP Arial Gas Compressor – Never Used
600 HP Arial Gas Compressor – Never Used
600 HP Arial Gas Compressor – Never Used
600 HP Arial Gas Compressor – Never Used
600 HP Arial Gas Compressor – Never Used
600 HP Arial Gas Compressor – Never Used

600 HP Arial Gas Compressor – Never Used

Manufacturer: Ariel
Model: JGJ/6

Driven by: Siemens
HP 600
Volts: 460
RPM: 887

Maximum Allowable Working Pressure: 635 PSIG
Frame Rated Speed (RPM): 1200
Minimum Speed (RPM): 900
Maximum Rod Load Tension: 21,000 LBS
Maximum Rod Load Compression 23,000 LBS

Ariel Shipping Date: May/June 2010

Normal Lube Oil Pressure: 60 PSI
Maximum Lube Oil Temperature: 190F
Lube Oil Pressure Shutdown Setting: 35 PSI

2 cylinders 19.00" bore 3.50" stroke 200 PSIG
2 cylinders 13.50"bore 3.50" stroke 300 PSIG
2 cylinders 9.750" bore 3.50" stroke 635 PSIG

12’9” wide

Contact for Pricing
